Waste Palstic Shredder Plastic Granulator for PP PE PVC

Product Description

waste palstic shredder plastic granulator for pp pe pvc

Applications
- plastic lump and plastic block, like PP, PE, PET, PC, ABS, Nylon.
-Plastic pipes
-PP/PE film,Woven bags
- Living garbage,
- Medical waste
-Electronic Waste
-Copper Cable,Aluminum Cable with steel
- Aluminum cans
-Wood,Pallet,tree root,solid wood etc

Waste Palstic Shredder Plastic Granulator for PP PE PVC

The plastic single shaft shredder can shred copper wire,aluminium wire, wood, plastic, rubber, or other relatively hard material , it can also used to be the primary chopper /shredder of cable granulator or cable recycling system. the working efficiency can be highly improved,it can also be used separately.It can shred copper wire,aluminium wire, wood, plastic, rubber, or other relatively hard material , it can also used to be the primary chopper /shredder of cable granulator or cable recycling system. the working efficiency can be highly improved,it can also be used separately.

Application for Plastic Wood Paper One Shaft Shredder

Plastic single shaft shredder is equipped with a rotating shaft, the rotating blades have four angles which has different materials. The rotating blade is fix on the single shafts ,can easy remove and change.The main shaft is driven by the motor and the reducer, and the material is pushed into the gap between the rotating blades and the fixed blade under the pushing of the laterally moving silo, and the material is simultaneously subjected to the functions of extrusion, tearing and shearing to achieve the purpose of crushing.

Advantages

1.The shredder is suitable for shredding waste plastic pipes, thick-walled HDPE pipes, and waste block plastics. The size after shredding is small.Capacity is customized.
2.Low tool usage and maintenance costs.
3.Easy to change tools.
4.Material size can be adjusted according to the size of the screen aperture.


Parameter of shredder:
ModelXT-4880XT-48100XT-48120XT-40150XT-48150XT-48200
Motor Power45kw55kw75kw110kw150kw150kw
Rotor Speed83 RPM83 RPM83 RPM83 RPM83 RPM83 RPM
Rotor Diameter480mm480mm480mm400mm480mm480mm
Rotor Blade57759374111135




Waste Palstic Shredder Plastic Granulator for PP PE PVC

Waste Palstic Shredder Plastic Granulator for PP PE PVC

Waste Palstic Shredder Plastic Granulator for PP PE PVC
Waste Palstic Shredder Plastic Granulator for PP PE PVC
Waste Palstic Shredder Plastic Granulator for PP PE PVC

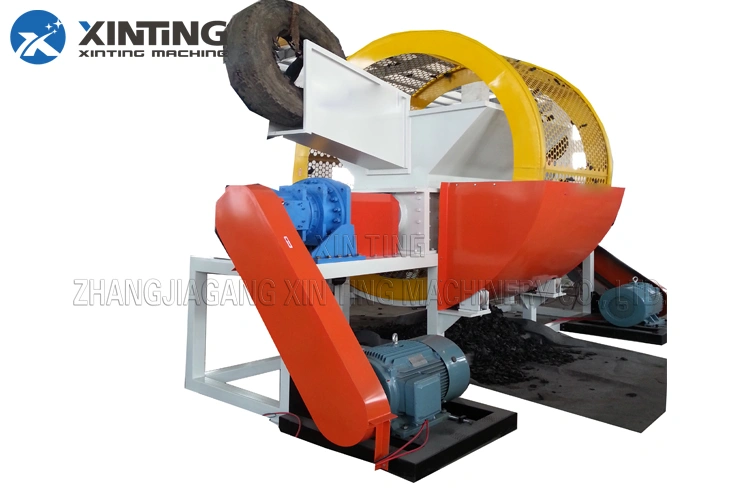

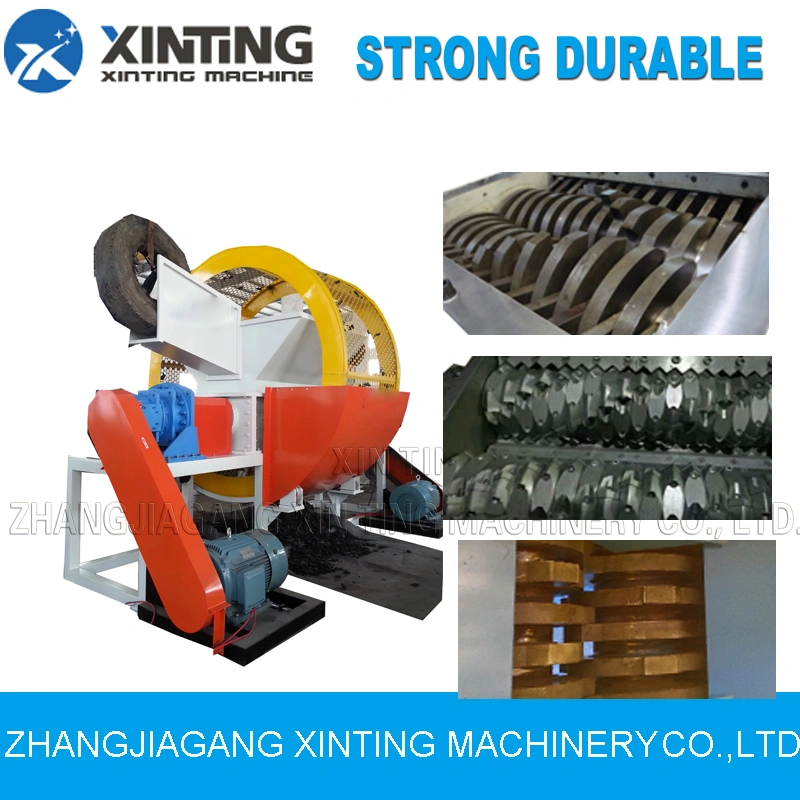

Double shaft shredder :
Product Application for double shaft shredder
New design of Blade Industry Plastic Crate Double Shaft Shredder is especially for shredding various big solid materials, unmanageable materials, waste plastic, plastic film, plastic pipe, fiber, wood, animal and paper which the normal crusher can not handle. .This new type double shaft shredder adapt new design that use very easy dismountable knife,it will changing the normal disadvantage that taking too long time for knife disassemble and install.Normal changing knife will take about 1 or 2 days,but use this shredder,the knife changing will not be a problem,several minutes will be enough.

Main Features
1)The shredder machine with big feeding mouth, it can put the big material successfully.
2)The rotary knife with edge of special design, it can get very high efficiency and high capacity.
3)The shredder machine is control by DELTA PLC control system; the knife can rotate inopposite direction and close automatically if something unexpected happens; with very high safety service.
4)The shredder machine runs slowly with low noise and less dusty.
5)The knife material with special alloy steel made, high temperature treatment,with long life time.

6)Knife is very easy for change.

Waste Palstic Shredder Plastic Granulator for PP PE PVC
Waste Palstic Shredder Plastic Granulator for PP PE PVC


Contact us if you need more details on Plastic Granulator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Waste Plastic Shredder Granulator、PP PE PVC Granulator. If these products fail to match your need, please contact us and we would like to provide relevant information.
