High Speed Plastic PE HDPE LLDPE LDPE Irrigation Water Energy Gas Pipe Tube Making Machine

Product Description

High Speed Plastic PE HDPE LLDPE LDPE Irrigation Water Energy Gas Pipe Tube Making Machine



Main Features for plastic PE PPR pipe making machine

1) Simple structure in linear type ,easy in installation operation and maintation.
2) Adopting advanced  famous brand components in pneumatic parts ,electric parts and operation parts.
3) Significant high out-put with low energy consumption.
4) Running in a high automatization and intellectualization.


PE PPR PIPE making machine Product Application:
1.The production line is suitable for producing small diameter single wall bellows with PP and PE raw materials. It can continuously produce polyethylene, polypropylene, polyvinyl chloride, Eva and other bellows and PA bellows.
2.It is used as wire and cable to wear pipe, washing machine drainage pipe, vacuum cleaner pipe and ventilator
3.It is widely used in automobile wire, electric wire pipe, machine tool circuit, lamp wire protection tube, air conditioner, washing machine and so on.


PE PIPE EXTRUSION LINE PARAMETERS

Model

Pipe range

Extruder

Max.output(kg/h)

Motor power

Total power

PE-63

16-63mm

SJ65/33 SJ25/25

120-180

45KW

110KW

PE-110

16-110mm

SJ65/33 SJ25/25

150-200

55KW

130KW

PE-160

50-160mm

SJ75/33 SJ25/25

150-220

75KW

150KW

PE-250

75-250mm

SJ75/33 SJ25/25

280-350

90KW

280KW

PE-315

110-315mm

SJ90/33 SJ25/25

250-350

132KW

350KW

PE-450

160-450mm

SJ90/33 SJ25/25

350-450

160KW

400KW

PE-630

315-630mm

SJ120/33 SJ25/25

550-850

200KW

550KW

PE-800

450-800mm

SJ150/33 SJ25/25

800-1300

250KW

750KW

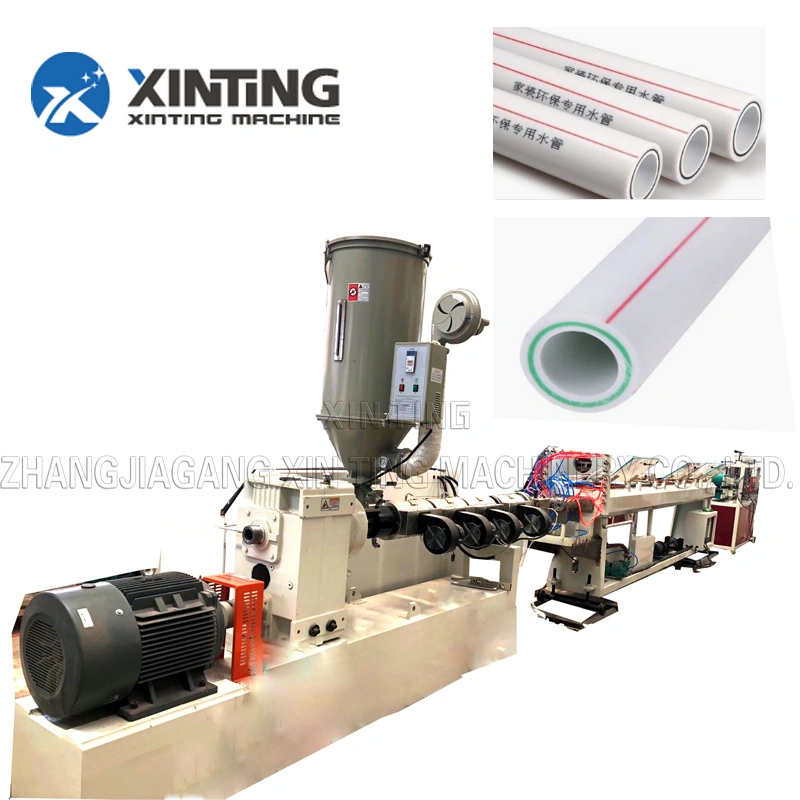

PPR PIPE EXTRUSION LINE PARAMETERS

Model

Pipe range

Extruder

Max.output(kg/h)

Motor power

Total power

PPR-63

16-63mm

SJ65/33 SJ25/25

100

75KW

32M

PPR-110

50-110mm

SJ75/33 SJ25/25

200

145KW

35M

PPR-160

75-160mm

SJ90/33 SJ25/25

220-250

180KW

35M


Process line:
Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing

This kind of pipe is high temperature resistance, anti-erosion, anti-abrasion and with high strength, the pipe can be used as oil pipe in automobile braking system, and for high temperature egas, chemical liquid transferring.
High Speed Plastic PE HDPE LLDPE LDPE Irrigation Water Energy Gas Pipe Tube Making Machine

High Speed Plastic PE HDPE LLDPE LDPE Irrigation Water Energy Gas Pipe Tube Making Machine

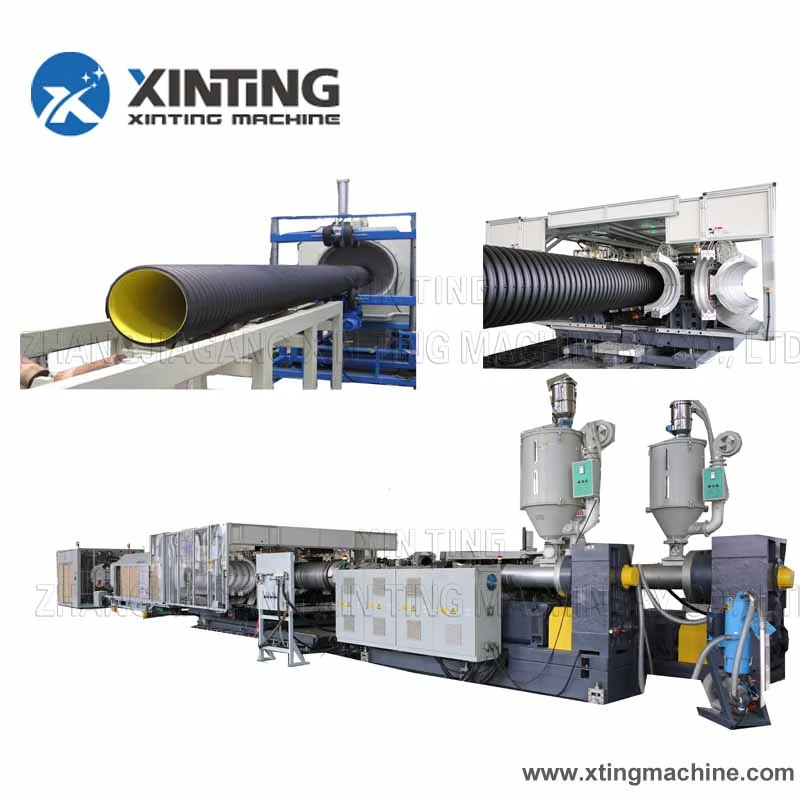

Features of PE HDPE corrugated pipe extruder product :
1.Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
2.Molding corrugation pipe with smooth inside and outside surface,and even ripple at one time by corresponding die

High Speed Plastic PE HDPE LLDPE LDPE Irrigation Water Energy Gas Pipe Tube Making Machine





Corrugated pipe production line Technical Parameter :


Pipe diameter8-32mm16-75mm
Main Extruder modelSJ50SJ65
Main Extruder L/D25:1/28:1/30:125:1/28:1/30:1
Capacity30-50kg/h60-80kg/h
Main Motor 11KW/15KW18.5KW/22KW
Cooling typeAir fans coolingAir fans cooling
Forming mould quantity50 paris60 pairs
Production Speed8-12m/min8-15m/min
Forming machine motor1.5kw1.5kw

High Speed Plastic PE HDPE LLDPE LDPE Irrigation Water Energy Gas Pipe Tube Making Machine

PVC pipe making machine

Description of  PVC pipe making machine :

PVC pipe extruder machine /PVC pipe making machine/PVC pipe extrusion line is mainly used in the manufacture of  the  UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.



This set is composed of conical twin-screw extrude, vacuum calibration tank, haul-off machine, cutter, stacker etc. The screw extruder and traction machine adopt imported AC frequency control device. The vacuum pump and traction motor both adopt advanced products. The haul-off machine has many models, such as two-claw, three-claw, four-claw, six-claw etc. It may choose visual blade or cutting type.The unit is of reliable performance and high production efficiency.



Our machine can produce the PVC pipe with diameter from 16mm to 630mm

Main parameter of PVC pipe making machine

Mode



Pipe range

(mm)

extruders



Max. output

(kg/h)

Max. speed

(m/min)

Total power

(kw)

Line length

(m)

PVC-50x2

16-50

SJSZ51/105

150

6m

60w

20m

PVC-63

16-63

SJSZ45/90

120

10m

45w

20m

PVC-110

50-110

SJSZ51/105

150

6m

60w

24m

PVC-160

63-160

SJSZ65/132

300

5m

100w

24m

PVC-250

110-250

SJSZ80/156

400

3.5m

120w

28m

PVC-315

160-315

SJSZ 80/156

400

3m

160w

28m

PVC-450

250-450

SJSZ 92/188

700

1.5m

200w

36m

PVC-630

315-630

SJSZ92/188

700

0.9

230kw

36m


High Speed Plastic PE HDPE LLDPE LDPE Irrigation Water Energy Gas Pipe Tube Making Machine




plastic pipe punching machine
High Speed Plastic PE HDPE LLDPE LDPE Irrigation Water Energy Gas Pipe Tube Making Machine

High Speed Plastic PE HDPE LLDPE LDPE Irrigation Water Energy Gas Pipe Tube Making Machine


pastic pipe screw making machine

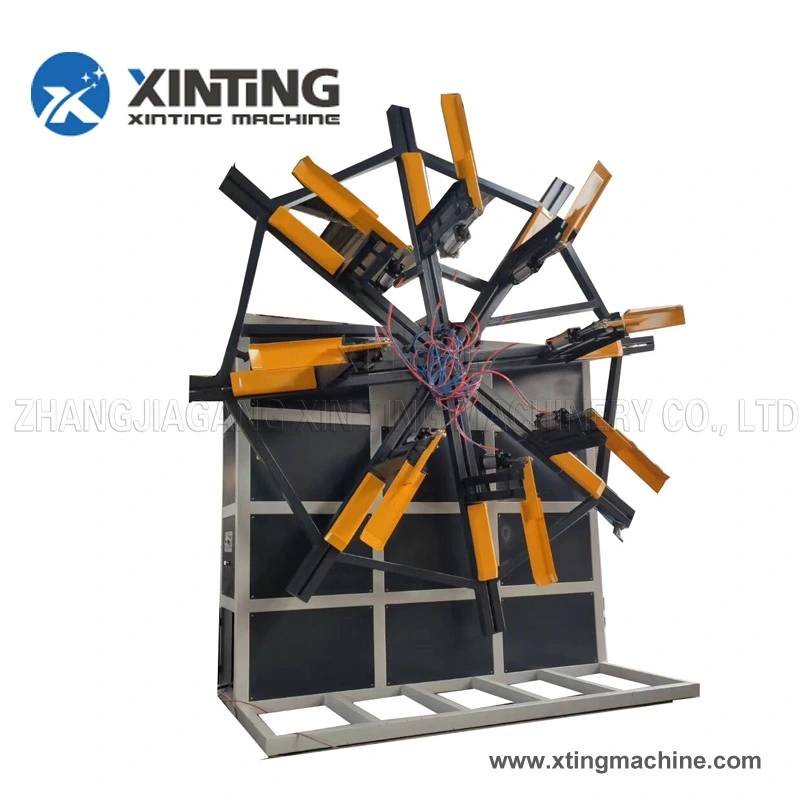

coiling winding machine

1) It is mainly used for winding PE pipe,PE aluminum pipe,corrugated pipe,and other some pipe or profiles.This pipe winding machine is highly automatic,and usually work with whole production line.



 2) The plate is controlled by gas; winding adopt torque motor; with special equipment to arrange the pipe, this pipe winding machine can wind pipe well, and work much stable.



 3) There are mainly model for this hose pipe winding machine: 16-40mm single/double plate pipe winding machine, 16-63mm single/double plate pipe winding machine,63-110mm single plate pipe winding machine.



Model of Full automatic Single station winder machine:

 Model

DS32

DS63

DS110

 Suitable pipe diameter

16-32

32-63

63-110

 Winding speed

Automatic adjusting according to pipe extrusion speed

 Winding inner diameter

Adjustable

 Winding width of roll

Adjustable

 Winding arrangement

Automatic displacer

 Discharge of roll

Pneumatic drive

Note:For big pipe winding machine,such as Φ160mm pipe,we need special design and take your special order.




High Speed Plastic PE HDPE LLDPE LDPE Irrigation Water Energy Gas Pipe Tube Making Machine
plastic PVC pipe belling expansion machine

Techiniacal Parameter

SGK-160



Pipe diameter:

Φ50-Φ160

Pipe length:

suitable for different pipe length

Production speed:

20PCS/H

Max. Heating temp.:

300°

Oil pump power:

1.5kw

Machine working air pressure:

4-6.3MP

Hydraulic oil

46# wearable oil

Air compressor power:

0.4-0.6Mpa

If cooling by water pressure

0.2-0.3MPa

Intsll power:

9.5kw(single oven), 20.5KW(double oven)

With PLC control:

FX1n-60MR

Electricity:

380V 50HZ 3P(according to client request)

Dimension:

6400×1550×1700mm

Machine weight:

3.6T



High Speed Plastic PE HDPE LLDPE LDPE Irrigation Water Energy Gas Pipe Tube Making Machine
