2.Three-dimensional swing mixing, the best mixing effect and the highest uniformity.
trough type drug powder and paste mixing machine
| Packaging: | wooden packing |
|---|---|
| Productivity: | 5 sets per month |
| Transportation: | Express,Ocean,Land,Air |
| Place of Origin: | Jiangyin city Jiangsu province |
| Supply Ability: | 5 sets per month |
| Certificate: | CE |
| HS Code: | 8479820090 |
| Port: | Shanghai port |
Basic Info
Model No.: CH-50
Product Description
CH series trough mixer is used for mixing powder or wet materials, so that different proportions of main and auxiliary materials mixed evenly, widely used in pharmaceutical, food, chemical, electronic and other industries of dry powder mixing. Groove mixer and material contact are made of stainless steel, pulp blade and barrel clearance is small, mixing without dead Angle, the mixing shaft is equipped with a sealing device at both ends, can prevent the material from pouring out, the hopper is controlled by the button movement, discharge is convenient, especially suitable for high uniform requirements, material proportion of the material mixing.
The machine has the characteristics of compact structure, simple operation, beautiful appearance, small footprint, convenient cleaning, good mixing effect and so on. Through mechanical rotation, the Mixing Machine makes the S-type stirring paddle rotate to push the material reciprocating turn over and mix evenly. The operation is controlled by electric appliance. The mixing time can be set and the machine will stop automatically at that time, thus improving the mixing quality of each batch of materials.
Technical data
| Model | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 |
| Paddle shape | S style single paddle | |||||||
| Working volume(L) | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 |
| Mixing speed | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Stir angle | <105 | <105 | <105 | <105 | <105 | <105 | <105 | <105 |
| Mixing power(kw) | 1.5 | 2.2 | 3 | 4 | 5.5 | 5.5 | 7.5 | 11 |
| Dumpling power(kw) | 0.37 | 0.55 | 0.55 | 0.55 | 1.1 | 1.1 | 1.5 | 2.2 |
| Weight(kg) | 280 | 350 | 480 | 550 | 780 | 950 | 1150 | 1350 |
| Overall size(L*W*H)mm | 1310*400*650 | 1450*500*900 | 1500*600*950 | 1700*600*1020 | 1850*700*1200 | 2100*750*1250 | 2100*800*1300 | 2400*850*1350 |

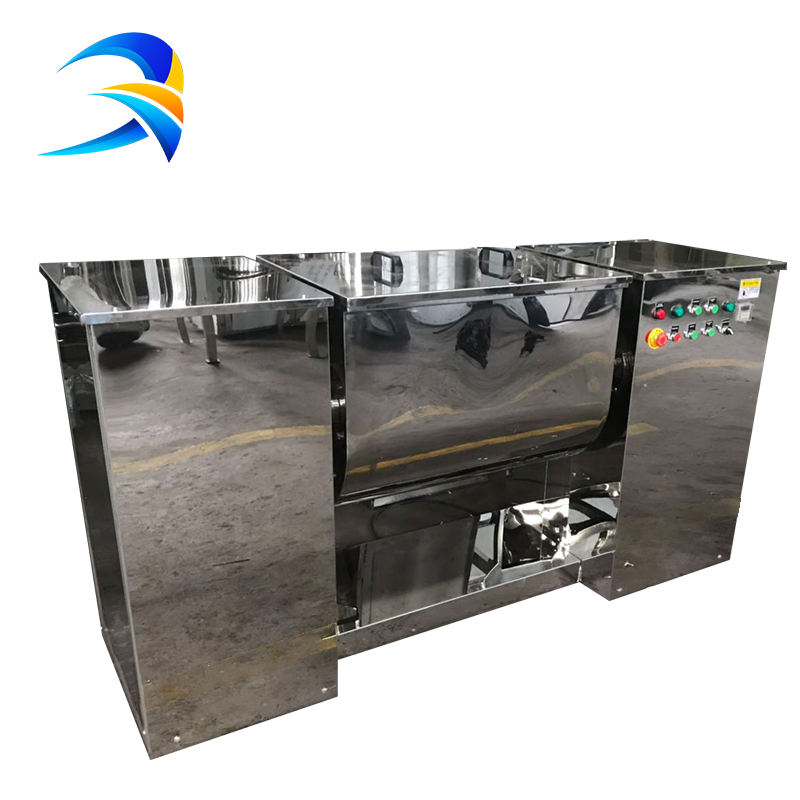

Product display
Related products
V SHAPE MIXER
1.Suitable for mixing dry material powder in pharmaceutical, food and chemical industry.
2.V-shaped mixing container.A stirring stick can be added for mixing materials containing a small amount of water.
3D SWING MIXER
1.Suitable for mixing dry material powder in pharmaceutical, food and chemical industry.
DOUBLE CONE MIXER
1.Suitable for mixing dry material powder in pharmaceutical, food and chemical industry.
2.Double cone mixing container. A stirring stick can be added for mixing materials containing a small amount of water.
WLDH HORIZONTAL RIBBON MIXER
1.Suitable for high-volume mixing of materials in the pharmaceutical, food, chemical industries.
2.The spiral ribbon is made of two layers. The inner ribbon makes the material move outwards,while the external ribbon makes the material move inwards which forms a good circulation of material.
Company profile
Jiangyin City Xuan Tai Machinery Equipment Co.,Ltd is located by the site of Taihu lake with the economic prosperity and beautiful scenery —Zhutang Town,Jiangyin city,Jiangsu Province.Which is near to Shanghai in the east,Wuxi in the South,North is the Jiangyin Yangtze River Bridge.The “golden channel “of Shanghai Nanjing High—Speed splitte rand Xicheng Expressway passing near by the geographic location is advantageous and the transportation is very convenient.
Our company specializes in producing pharmaceutical machinery,food machinery,chemical machinery.We are a professional manufacturing factory with research,development and sales of medicine machinery.Through the rigorous testing system to ensure 100% qualified.
Main Five series products:pulverzier machine, sifting machine, mixer machine, granulator machine and drying machine.
Our company products in the market are welcomed and praised by customers.
The enterprise sticks to the business purposes of “to the quality of survival,to the efficiency of development”.Being pioneers,creative and striving to improve product quality.We will provide our customers with better service. Sincerely thank our new and old customers cooperation and support,welcome to contact us to discuss business and create a better future together!
Our company specializes in producing pharmaceutical machinery,food machinery,chemical machinery.We are a professional manufacturing factory with research,development and sales of medicine machinery.Through the rigorous testing system to ensure 100% qualified.
Main Five series products:pulverzier machine, sifting machine, mixer machine, granulator machine and drying machine.
Our company products in the market are welcomed and praised by customers.
The enterprise sticks to the business purposes of “to the quality of survival,to the efficiency of development”.Being pioneers,creative and striving to improve product quality.We will provide our customers with better service. Sincerely thank our new and old customers cooperation and support,welcome to contact us to discuss business and create a better future together!

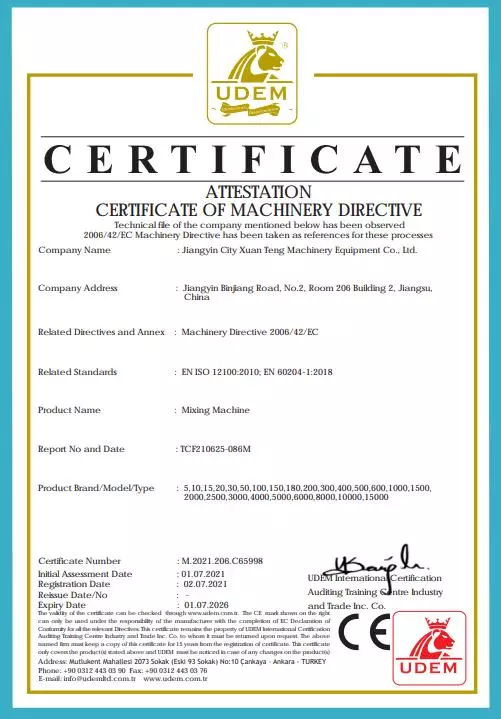

Certifications
