Mineral Thickener For Ore Fines Enrichment

  • Mineral Thickener For Ore Fines Enrichment
  • Mineral Thickener For Ore Fines Enrichment
  • Mineral Thickener For Ore Fines Enrichment
  • Mineral Thickener For Ore Fines Enrichment

Mineral Thickener For Ore Fines Enrichment

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Delivery Time: 40 Days
    Packaging: Container Loading
    Productivity: 390-2400 t/d
    Brand: Mingyuan
    Transportation: Ocean
    Place of Origin: Henan, China
    Supply Ability: 5 sets per month
    Certificate: CE, ISO
    HS Code: 8421191000
    Port: Qingdao Port,Tianjin Port,Shanghai

Basic Info

Model No.: 18M

Product Description

Mining Thickener or mineral thickener is an auxiliary equipment that used in the Mineral Processing Plants, it is mainly used to enrich the solid concentration, it needs to add between the concentrate fines and the filterating device, and it can be used before the fine processing process. take gold CIP plant as example, the mining thickener is used after the ball mill and before the leaching tanks. for the other sites the mining thickener is used before the filter machine, such as lead & zinc ore beneficiation plant, nickel ore beneficiation plant, cobalt ore beneficiation plant, and it can be also used in chemical industry, coal washing plant, paper making industry. besides it can be also used for dewatering purpose.

The mining thickener has different names depends on the materials, such as it is called tailing ore thickener when it's mainly used for tailing, it is called ore fines thickener when it is mainly used for ore fines, and it is called coal thickener if it is used for coal washing purpose. there are mainly two different driving methods, one is central driving and the other is peripheral driving.

Technical parameter of Tailing Ore Thickener /ore fine thickener


Thickening tank diameter

Thickening tank Depth


Sediment area

Motor model

Motor power










































Technical parameters of thickener:

Drive Way Concentration Basin Production Capacity(t/24h) Matched Motor Overall Dimension(L*W*H)(mm) Weight(t)
Diameter(mm) Central Depth(m) Model Power(kw)
NZS-1 Center drive 1.8 1.8 5.6 Y90L-6 1.1 2000*1960*2900 1.5
NZS-3 Center drive 3.6 1.8 22.4 Y90L-6 1.1 3917*3787*3190 3.4
NZS-6 Center drive 6 3 62 Y100L2-4 3 6170*6170*5053 5.6
NZS-9 Center drive 9 3 140 Y132S-6 3 10000*10000*5337 7.9
NZS-12 Center drive 12 3.5 250 Y132S-6 3 15500*12000*6625 8.5
NZS-15 Peripheral roll wheel 15 3.5 390 Y132S-4 5.5 16545*15670*7017 9.12
NZS-18 Peripheral roll wheel 18 3.5 560 Y132S-4 5.5 19742*18864*7047 10.0
NZS-15 Peripheral roll wheel 15 3.5 390 Y132S-4 5.5 17000*15000*7000 11.0
NZS-18 Peripheral roll wheel 18 3.5 560 Y132S-4 5.5 20000*18000*7000 12.12
Work Principle of Tailing Ore Thickener /ore fine thickener

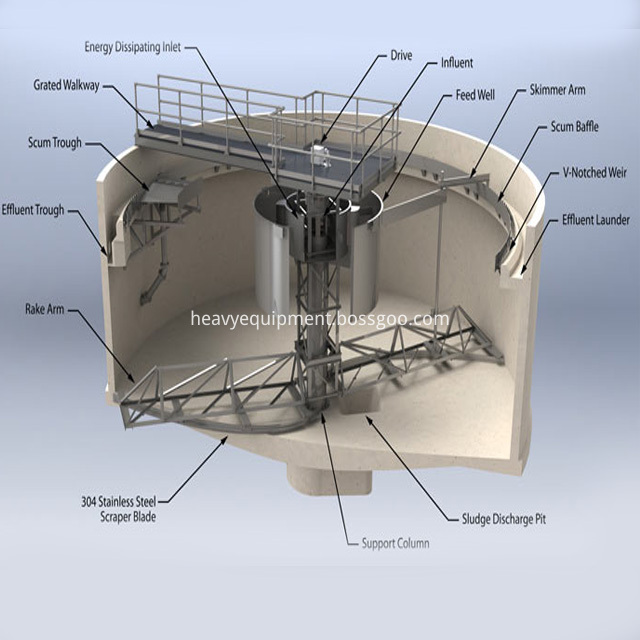

This thickener consists of round thickener and harrow scrapping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.
Spiral Rake Thickener
Application of Tailing Ore Thickener /ore fine thickener
Efficient thickener is widely applied in metallurgy, mines, coal, chemical industry, building materials, environmental protection and other departments, which has significance for improvement of water returning utilization rate and underflow conveying concentration.
