800-900mm PE Pipe Making Extrusion Machine

Product Description

13-630mm PVC Pipe Extruder

Pipe diameter range :

16 ~ 63 mm / 0.75 inch to 2.5 inch

75 ~ 160 mm / 3 inch to 6.3 inch

110 ~ 250 mm / 4.3 inch to 10 inch

200 ~ 400 mm / 8 inch to 16 inch

450 ~ 630 mm / 18 inch to 25 inch

630 ~ 800 mm / 25 inch to 32 inch



( If the above pipe diameter range can not match your requirements , please send your required ones to us. We will provide best solutions for your project. )



Machine components:

No

Equipment

Quantity

1

Automatic material feeder

1set

2

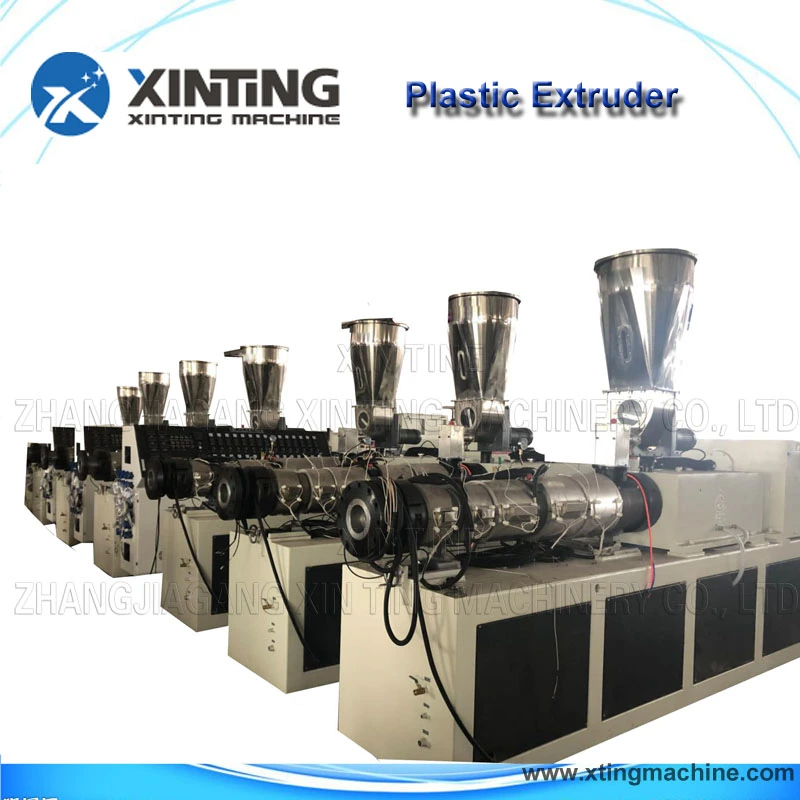

Conical double screw extruder

1set

3

Die-head

1set

4

Vacuum calibration & cooling tank

1set

5

Hauling machine

1set

6

Cutting machine

1set

7

Pipe stacker

1set

8

Electric control cabinet


1set

Auxiliary machines for your choice

9

Printer

1set

10

Mixer

1set

11

Crusher

1set

12

Milling machine


1set

13

PVC pipe belling machine

1set



 Working flow:

Mixing Machine → Material Feeder → Conical Twin-screw Extruder → Vacuum Calibration Tank→ Haul-off  Machine → Cutting Machine → Stacker →Waste Pipe Recycling Machine(Crusher&Milling Machine)



Materials and application:


•Pressure Pipe

- water distribution system

- water supply

•Non Pressure Pipe

- sewer systems/drain water

- waters discharge systems for civil

and industrial building

- meteoric waters discharge

- venting system

•Industrial Application

•Cable Conduit

•Flexible Pipe

- gardening hose

- protection sheathing for electric cable



Description of PE Pipe plant HDPE Plastic pipe making machine:
This PE Pipe Extrusion Line can be used in PE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb. Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.

Process Flow of PE Pipe plant HDPE Plastic pipe making machine:
Process Flow of PE Pipe plant HDPE Plastic pipe making machine:
Raw material + master batches → mixing → vacuum feeding → material dryness → single screw extruder → basket co-extrusion mould →
calibrator → spray vacuum calibration tank → spray cooling water tank → belt haul-off → single screw glue extruder → winder →
winding roller forming → water cooler → cutter → pipe rack → finished product inspecting & packing



Main technical parameter:



Diameter(mm)

16-40dual

20-63dual

20-63

50-160

63-200

160-315

315-630

Extruder mode

SJZ51/105

SJZ65/132

SJZ51/105

SJZ65/132

SJZ65/132

SJZ80/156

SJZ92/188

Extruder power

18.5AC

37AC

18.5AC

37AC

37AC

55AC

110DC

Max lineal speed

10

15

15

3.5

1.2

Max capacity

120

250

120

250

250

350

800





800-900mm PE Pipe Making Extrusion Machine

800-900mm PE Pipe Making Extrusion Machine
800-900mm PE Pipe Making Extrusion Machine
800-900mm PE Pipe Making Extrusion Machine
800-900mm PE Pipe Making Extrusion Machine


Contact us if you need more details on 800mm Pipe Making Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about PVC Pipe Extruder、Pipe Extrusion Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
