Single Screw Plastic Pelletizing Extruder/ PP PE Granules Machine
Product Description
Our machine use high efficinet compactor force feeder, excellent screw, strong vacuum degassing system ,fast hydraulic sceen change,Vertical die face cuttuer,automatic vibrator screen.

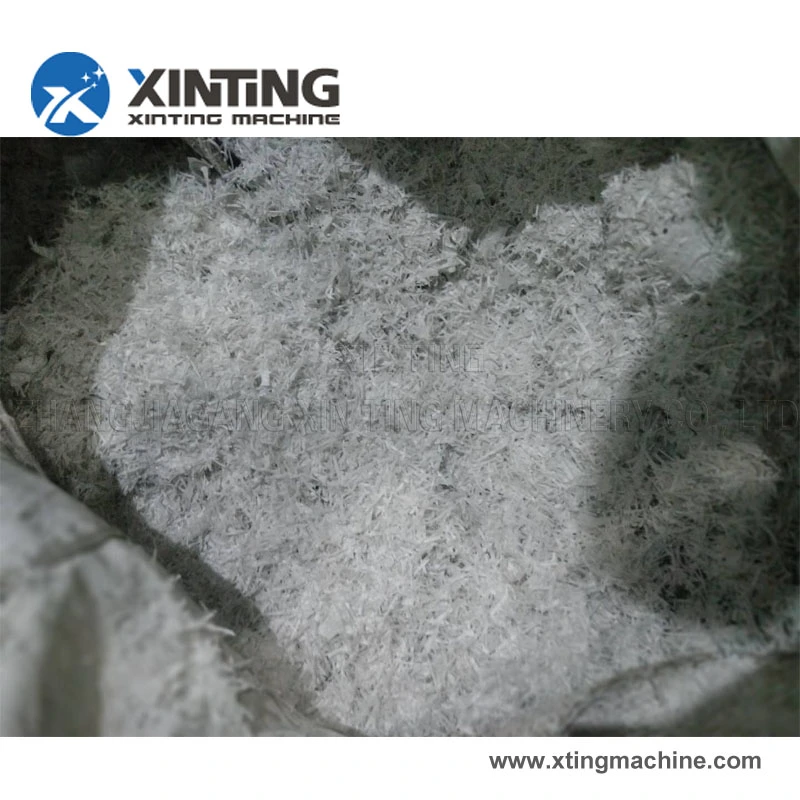

Raw material:
PP, HDPE, LDPE, LDPE,BOPP,PLA Film, Woven bags/Nonwoven bags/Jumbo bags/ Raffia bag material
Advantages:
1.Material will be cut, pre-heated,mixed and compacted by Compactor machine
2.Highly efficient, Less power consumption, Highly automatic
3.We supply single stage or double stage (Mother and baby type).
4. Supply 150~1000 kg/h or customized big capacity for customer.

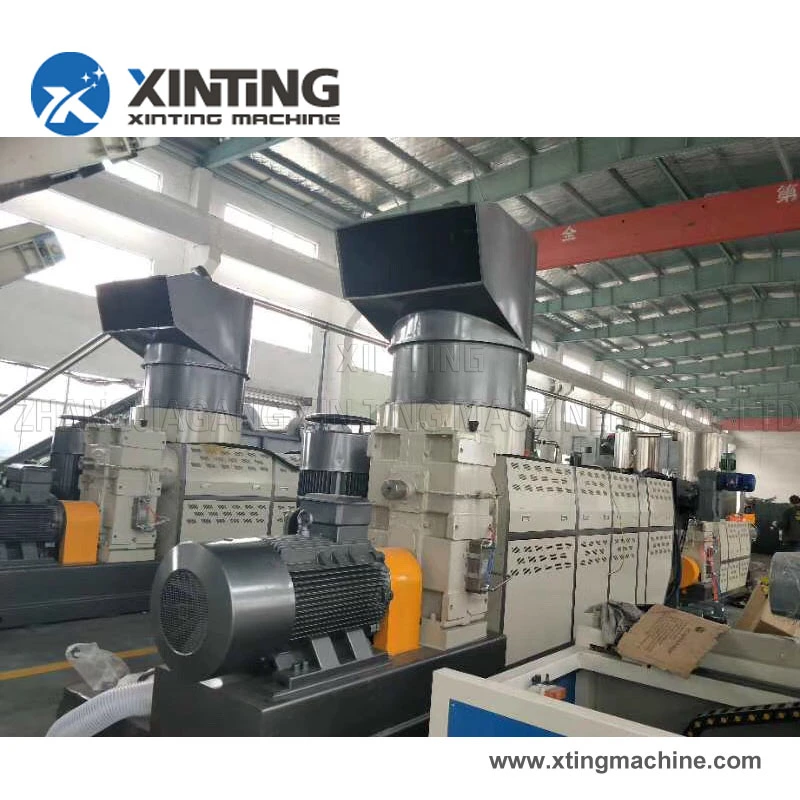

1# plastic pelletizing machine extruder layout:
1.Conveyor belt
2.Semi automatic metal detector
3.Compactor force feeder
4.The first stage extruder
5.Without Wire mesh filter hydraulic changer or hydraulic screen change+ vacuum degassing head
6.the second stage extruder
7.Standard hydraulic changer
8.Die face cutting system(vertical or horizontal)
9.Water cooling tank
10.Centrifugal dewatering machine
11.Vibrator screen machine
12.Air conveyor & Storage silo
Application of raw materials:
PE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS,XPS, Stretch film, Non woven fabric, Woven bags,etc.
Flow chat of PP/PE plastic granules/pellets making machine:
Water ring granulating:
Conveyor → Film compactor → Single screw extruder → Die head and hydraulic screen changer →Water ring pelletizing → Water tank → Dewatering machine → Vibration sieve → Air blower → Storage silo
Features of granulator
High efficiency force-feeder ensures high capacity feeding, low energy consumption.
Extruder of PP/PE film pelletizing line: single stage or double stage pelletizing.
Pelletizing style: water-ring and water cooling strand cutting with extrusion mould, even cutting ensures good shape.
Main parameters PP/PE plastic granules:
Extruder | SJ85 | SJ100 | SJ130 | SJ160 |
Screw diameter | 85mm | 100mm | 130mm | 160mm |
Main motor | 55kw | 90kw | 132kw | 160kw |
Compactor power | 37kw | 55kw | 75kw | 90kw |
Capacity | 100-180kg | 200-300kg | 300-400kg | 500-600kg |
