Plastic Single Screw Granulating Machine

Product Description

plastic single screw granulating machine

compacting pelletizing system, it is a three in one recycling machine designed for low density plastic articles. It could provide the excellent re-pelletizing and recycling solution for film, raffia, filament, woven bag and nonwoven fabric and other consumed / post soft or rigid plastic. Our pellet making machine has a wide application in PE, PP, CPP, BOPP, PS, PPS, EPS, ABS, PA, PLA, PET waste plastic materials recycling field.

Ability:
Our pelletizing system with superior quality which have high productivity for PP/PE/PS/ABS/BOPP/CPP plastic could get high property output pellets.
Stability:
The pelletizing system is available for 24 hours working non-stop operation.
Efficiency:
The pelletizing system have very low consumption values for electricity, water and labor.


Control:

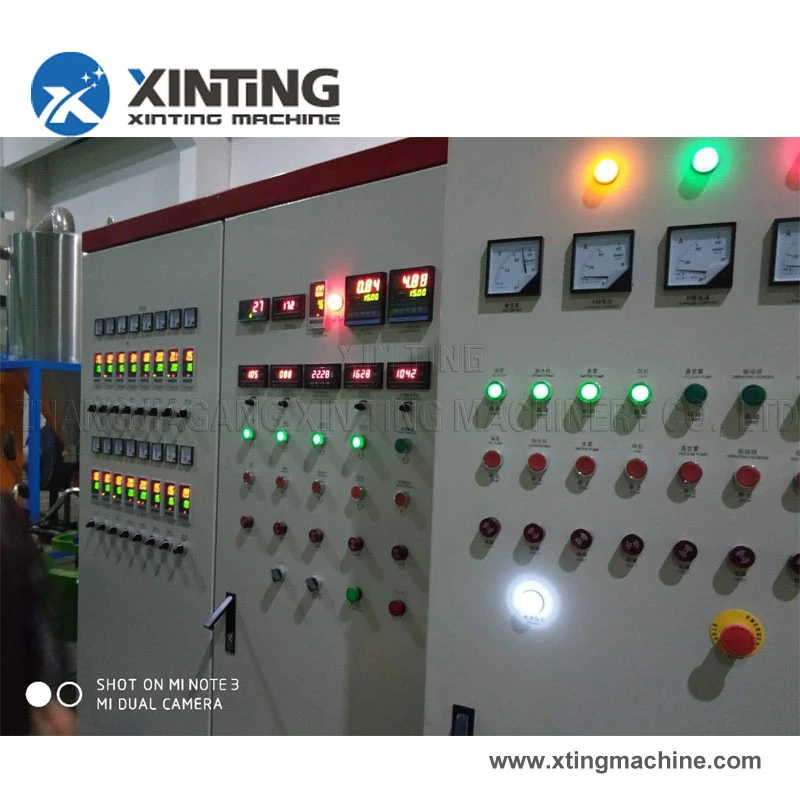

Intelligent automatic control of pelletizing system reduces the labor operation, makes the whole system easier and more reliable to control.
Service:
Consistently quick and careful service in pre-sales and after-sales process. Overseas installation, commissioning and training are available.



Plastic Single Screw Granulating Machine
Plastic Single Screw Granulating Machine

Application of raw materials:

PE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS,XPS, Stretch film, Non woven fabric, Woven bags,etc.



Flow chat of PP/PE plastic granules/pellets making machine:

Water ring granulating:

Conveyor → Film compactor → Single screw extruder → Die head and hydraulic screen changer →Water ring pelletizing → Water tank → Dewatering machine → Vibration sieve → Air blower → Storage silo


Features of granulator

High efficiency force-feeder ensures high capacity feeding, low energy consumption.

Extruder of PP/PE film pelletizing line: single stage or double stage pelletizing.

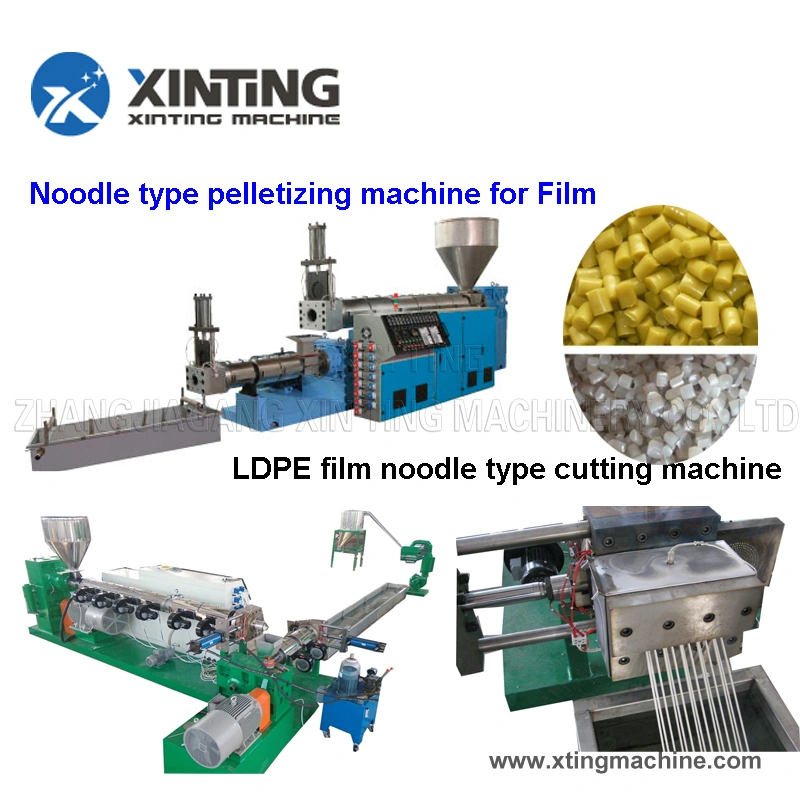

Pelletizing style: water-ring and water cooling strand cutting with extrusion mould, even cutting ensures good shape.


Main parameters PP/PE plastic granules:

ExtruderSJ85SJ100SJ130SJ160
Screw diameter85mm100mm130mm160mm
Main motor55kw90kw132kw160kw
Compactor power37kw55kw75kw90kw
Capacity100-180kg200-300kg300-400kg500-600kg


Plastic Single Screw Granulating Machine
Plastic Single Screw Granulating Machine
Plastic Single Screw Granulating Machine
Plastic Single Screw Granulating Machine
Plastic Single Screw Granulating Machine





Plastic Single Screw Granulating Machine
Plastic Single Screw Granulating Machine
Plastic Single Screw Granulating Machine
Plastic Single Screw Granulating Machine




Contact us if you need more details on Single Screw Granulating Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Waste PP PE ABS PC HDPE ABS Granulating Machine、PP PE PVC Recycle Granules Making Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
