Waste Pet Bottle Flake Recycled Machine Plastic Recycling Machine

Product Description

Waste Pet Bottle Flake Recycled Machine Plastic Recycling Machine




WHAT WE CAN OFFER YOU
PP PE BOTTLE RECYCLING MACHINE

Waste Pet Bottle Flake Recycled Machine Plastic Recycling Machine
PET BOTTLE WASHING waste pet bottle recycling machine AND PELLETIZING MACHINE
Waste Pet Bottle Flake Recycled Machine Plastic Recycling Machine

pp pe film washing machine
Waste Pet Bottle Flake Recycled Machine Plastic Recycling Machine
Waste Pet Bottle Flake Recycled Machine Plastic Recycling Machine


PET bottle washing line :

XINTING Good Supplier plastic bottle wash recycle line PET bottle washing recycling machine

1-Plastic recycling washing machine is applied in PET waste bottle or sheet recycling field.

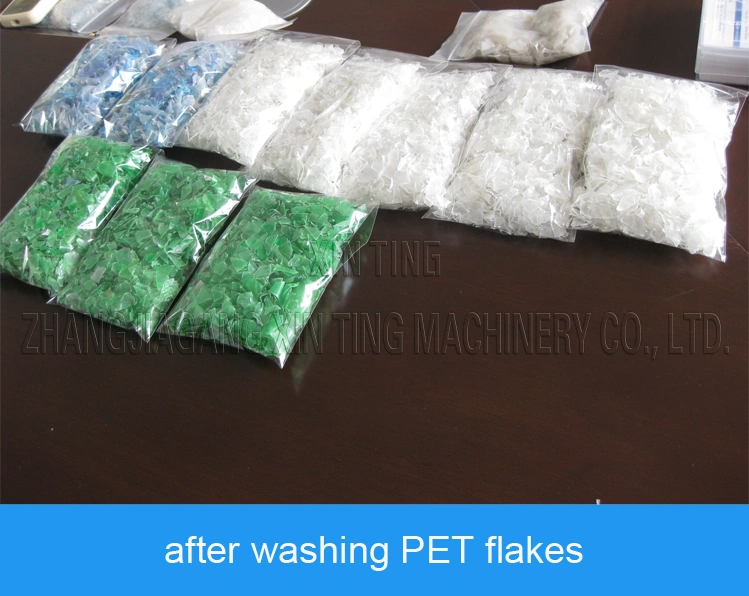

2-Through crushing, washing and dry process, the waste bottle or sheet will become to be bottle flakes. The flakes are widely used in plastic industry, like sheet, and profile production.

3-The clean flakes can be used to produce the polyester staple fiber, PET strap band, granules, PET transparent film and sheets, etc. The top class flakes can be used to blow bottles again.

4-Recycling machine can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products are very clean.

5-Recycling plastic machine output we can supply is from 300kg/h to 3000kg/h.

Waste Pet Bottle Flake Recycled Machine Plastic Recycling Machine


For the total plastic bottle washing machine

Product Description of plastci recycling machine:

The pet bottle recycling machine is specially designed to produce fiber use PET flakes.
The flakes can be used for the 2-D, 3-D PSF, filament yarn, PET strap, PET sheet or PET film.
The pet bottle recycling line can adopt the PLC automatic control of the full line to control the final products quality and save energy.
 Pet bottle recycling line can be equipped with the Europe automatic material sorting system and color sorting system.
plastic recycling machine can be customized according to the raw material and customer requirement



No.

Machine ListFunction
1Belt ConveyorBottles conveying
2Bottle Label RemoverRemove above 90% labels for both common and compressed bottle; No flakes waste and no water consumption
3Manual Sorting BeltManually sort out PVC bottle, labels, and other impurities
4Belt ConveyorBottle conveyor tp crusher
5PSJ1200 CrusherBottle crushing into flakes
6Horizontal Screw LoaderConveying flakes to next screw loader
7Screw LoaderPET flakes conveying
8Floating WasherWash flakes and remove floating materials as PP, PE and Caustic soda
9Low Speed Friction WasherRemove sand, mud and dirty
10Hot WasherAfter hot washing, it's easier to remove oil, glue
11Screw LoaderPET flakes conveying
12Hot WasherAfter hot washing, it's easier to remove oil, glue
13Screw LoaderPET flakes conveying
14High Speed Friction WasherRemove the glue and dirty
15Screw LoaderPET flakes conveying
16&17Floating WasherWash flakes and remove floating material as PP, PE and Caustic Soda
18Spray WasherRemove the Caustic Soda
19Centrifugal DryerDrying and flakes moisture reach 2%
20Pipeline DryerHot air drying, moisture <1%
21Label Flake SeparatorRemove little amount of label and dust in PET flakes
22Packaging SystemStorage silo for PET flakes
23Electric CabinetElectric control for the complete line, can be customized



PET Flake Quality Reference Table:

Moisture Content<0.9%Label<20ppm
PVC<20ppmVariegated Tablets<30ppm
Glue<10ppmpHNeutral
PP/PE<20ppmTotal Impurity<100ppm
Metal<20ppmFlake Size12mm, 14mm or customized

Production Consumption:

ItemsAverage Consumption Per Ton Flakes
Electricity (kw/h)200 kw/h
Steam (kg)500 kg
Washing Detergent (kg)8 kg
Water (t)2m³
Waste Pet Bottle Flake Recycled Machine Plastic Recycling Machine
Waste Pet Bottle Flake Recycled Machine Plastic Recycling Machine



QUESTIONS AND ANSWERS:

Q:What about your machinery?
A:Seeing is believing.Our strength technical team guarantee the highest quality,not only of machine,but also of precisely control and final product.

Q:What about the price?
A:Our price is based on reasonable competition.

Q:What about after service?
A:We can offer 18months warrant since the machinery arrived at your factory except for durable parts.After warrant,we will offer space parts or repair service with or without charges.

In the midst of the market economy, Xinting Company has established a good reputation, pursued excellent products, and provided perfect services in a sincere attitude and full of passion. It has always been satisfied with your requirements and wishes, providing a comprehensive and in place service. . Xinting people will provide customers with high-quality complete sets of equipment and comprehensive technical support based on the development concept of "Great Industry for 100 years".
Zhangjiagang Xinting Machinery warmly welcomes users at home and abroad to come to the company to negotiate!


Waste Pet Bottle Flake Recycled Machine Plastic Recycling Machine


Contact us if you need more details on Pet Bottle Flake Recycling Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Waste Bottle Recycled Machine、Waste Bottle Recycled Machine for Pet Bottles. If these products fail to match your need, please contact us and we would like to provide relevant information.
